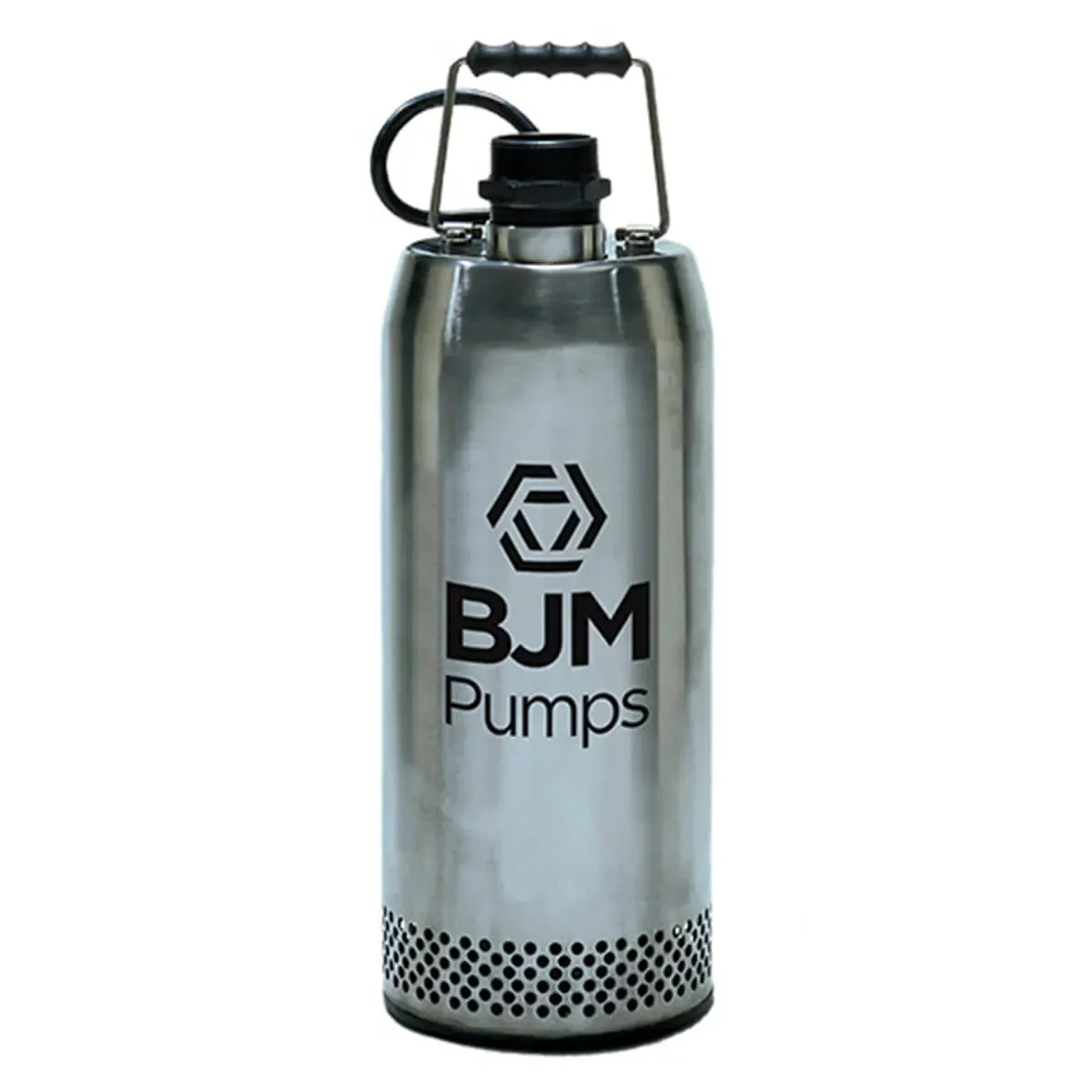

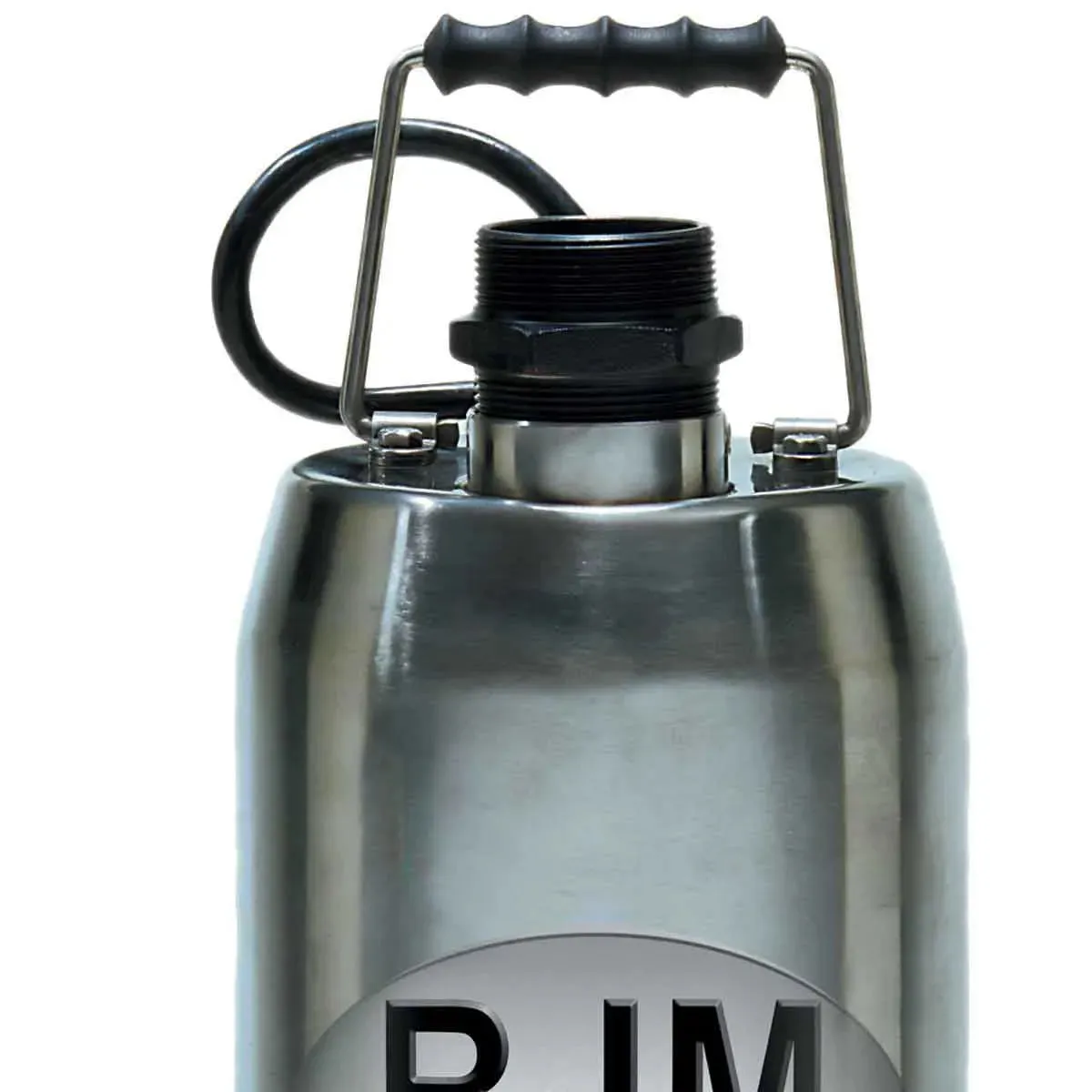

BJM R750-115 2" Submersible Dewatering Pump
The Bullet pumps (1HP) are ideal for dewatering construction sites, mines, circulating fountain water, or for all around use in industrial plants and utilities
Features
- Perfect for easy clean up of floods, and spills in basements, businesses, industrial and recreation areas
- 304SS motor housing; superior to pumps with aluminum housings that wear out pumping sandy water
- Hardened cast iron impellers and volutes; superior to pumps with plastic impellers that erode or plastic pump bodies that crack from rough handling
- 1 HP, 115Volts, single phase, 14 Full Load Amp
- Class F motor insulation handles higher temperatures without degrading motor life better than pump motors with Class A, E or B insulation
- 3 seals: Lip seal, (2) mechanical seals; silicon carbide and carbon/ceramic
Technical Specifications
| BJM 750 Pump Specifications | |
| MAX. FLOW: GPM | 89 gpm |
| MAX. HEAD: ft | 49 ft |
| PUMP TYPE | Elec. Submersible, Top Discharge, Dewatering |
| STRAINER OPENING | 1/4" |
| DISCHARGE CONNECTION | 2" NPT-M |
| SHIPPING WEIGHT:lbs | 68 lbs |
| MECHANICAL SEAL UPPER | Crb / Cer |
| MECHANICAL SEAL LOWER | Crb / Cer |
| MOTOR CASING | 304 SS |
| PUMP VOLUTE | Cast Iron |
| IMPELLER- MULTI VANE | Cast Iron |
| STRAINER | 304 SS |
| LIPSEAL & O-RINGS | Buna-N |
| ROTOR SHAFT | 304 SS |
| EXTERNAL HARDWARE | 304 SS |
| QTY. OIL IN SEAL CHAMBER | 2.7 U.S. fl. oz. |
| Motor Data | |
| MOTOR RATING: HP | 1 |
| MOTOR RPM | 3450 |
| MOTOR INSULATION CLASS | F |
| MOTOR SERVICE FACTOR | 1.1 |
| VOLTAGE | 115V, 1ph-60Hz |
| CURRENT Full Load Amps | 14 Amps |
| MOTOR PROTECTION | Thermal & Amp O.L. |
| POWER CORD GAGE & LENGTH | 14/3; 50 ft. |
| MAXIMUM LIQUID TEMPERATURE | 104 F |
